State-of-the-art binary code analysis tools

IDA has a file loader named ‘hex’ which mainly supports loading of text-based file formats such as Intel Hex or Motorola S-Record. These formats contain records with addresses and data in hexadecimal encoding.

For example, here’s a fragment of an Intel Hex file:

:18000000008F9603008FD801008FDC01008FE001008FE401008FE80190
:20004000008FEC01008FF001008FF401008FF801008FFC01008F0002008F0402008F08024D
:20006000008F0C02008F1002008F1402008F1802008F1C02008F2002008F2402008F280228
:14008000008F2C02008F3002008F3402008F3802008F3C0293
:1000A000008F4002008F4402008F4802008F4C02F4
:20010000008F5002008F5402008F5802008F5C02008F6002008F6402008F680243204C694C
:20012000627261727920436F707972696768742028432920313939352048492D5445434818

or an S-Record

S0030000FC
S1230100810F0016490F0016816F8A0A0F00000098300016B2310016BC3300168E0D0016A7
S1230108280F00169A2900168A00F001866000080400000018230016792200160C00000032
S12301109800E00182A09E0B8000C2012A38001608000000EA3100163A380016FA310016CA
S1230118FF250016BE21001600000000182200169A0100169C330016F9C010010D000000D7

However, you may also have a simple unformatted hex dump, with or without addresses:

0020: 59 69 74 54 55 B6 3E F7 D6 B9 C9 B9 45 E6 A4 52
1000: 12 23 34 56 78
0100: 31 C7 1D AF 32 04 1E 32 05 1E 3C 32 07 1E 21 D9
12 23 34 56 78

Such files are recognized and handled by another loader called ‘dump’. Since, like raw binaries, they do not carry information about the processor used, it has to be selected by the user.

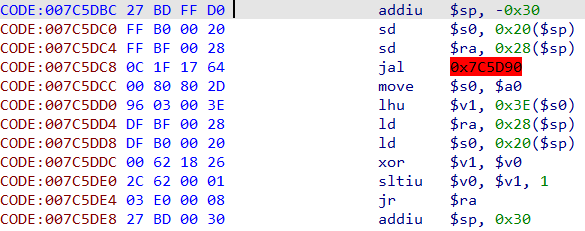

For example, a hex dump of some MIPS code:

007C5DBC 27 BD FF D0
007C5DC0 FF B0 00 20
007C5DC4 FF BF 00 28
007C5DC8 0C 1F 17 64
007C5DCC 00 80 80 2D
007C5DD0 96 03 00 3E
007C5DD4 DF BF 00 28
007C5DD8 DF B0 00 20
007C5DDC 00 62 18 26
007C5DE0 2C 62 00 01
007C5DE4 03 E0 00 08
007C5DE8 27 BD 00 30

can be loaded into IDA without having to convert it to binary or a structured format like ELF.

This feature could be useful when working with shellcode or exchanging data with other software. As we described before, IDA also supports exporting data from database as hexadecimal dump.
