Strings in binaries are very useful for the reverse engineer: they often contain messages shown to the user, or sometimes even internal debugging information (function or variable names) and so having them displayed in the decompiled code is very helpful.

However, sometimes you may see named variables in pseudocode even though the disassembly shows the string nicely. Why does this happen and how to fix it?

Memory access permissions

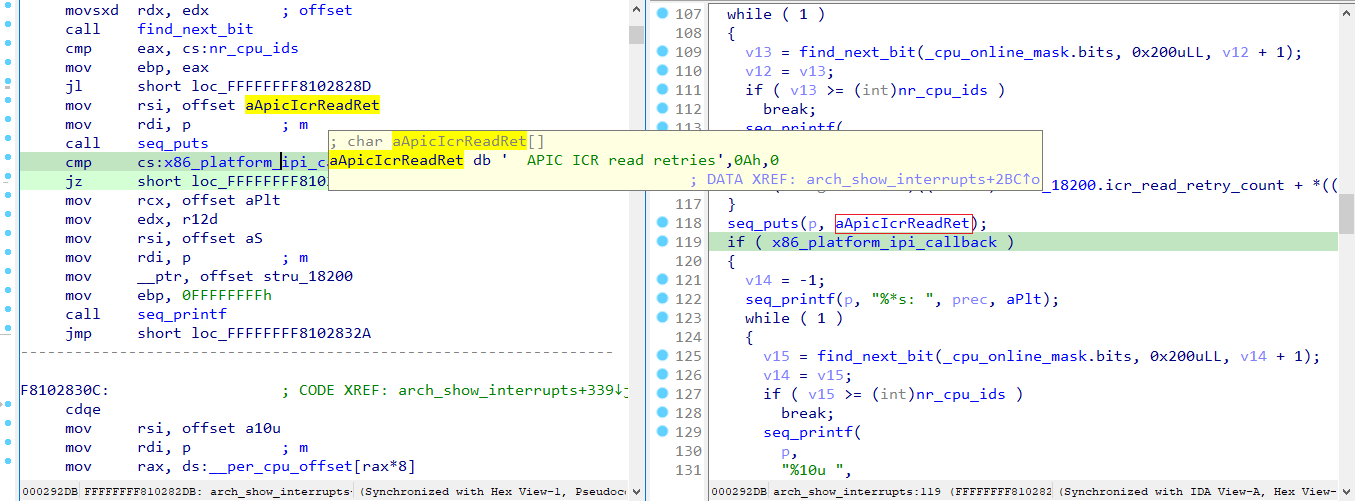

When deciding whether to display a string literal inline, the main criteria are attributes of the memory area it resides in. If the memory is writable, it means that the string is not really constant but may change, so displaying a variable name is more correct. For example, here’s the default pseudocode of a function from a decompressed Linux kernel:

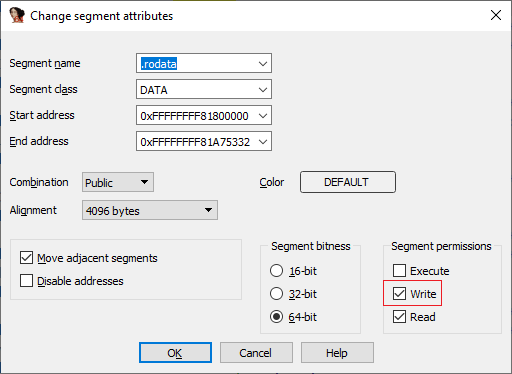

We can see a string literal is displayed as a variable name (aApicIcrReadRet) even though it is a nice-looking string in the disassembly. The mystery can be cleared up if we jump to its definition (e.g. by double-clicking) and inspect the segment properties (Edit > Segment > Edit Segment…, or AltS). We can see that the segment is marked as writable:

Why does .rodata (“read-only data”) have write permissions? We can’t say for sure, but the section does include this flag in the ELF headers:

(readelf output)

Section Headers:
  [Nr] Name              Type             Address           Offset
       Size              EntSize          Flags  Link  Info  Align
  [ 0]                   NULL             0000000000000000  00000940
       0000000000000000  0000000000000000           0     0     0
  [ 1] .text             PROGBITS         ffffffff81000000  00001000
       0000000000628281  0000000000000000  AX       0     0     4096
  [ 2] .notes            NOTE             ffffffff81628284  00629284
       0000000000000204  0000000000000000  AX       0     0     4
  [ 3] __ex_table        PROGBITS         ffffffff81628490  00629488
       0000000000002cdc  0000000000000000   A       0     0     4
  [ 4] .rodata           PROGBITS         ffffffff81800000  0062d000
       0000000000275332  0000000000000000  WA       0     0     4096

<...skipped...>

Key to Flags:
  W (write), A (alloc), X (execute), M (merge), S (strings), I (info),
  L (link order), O (extra OS processing required), G (group), T (TLS),
  C (compressed), x (unknown), o (OS specific), E (exclude),
  l (large), p (processor specific)

One possibility is that it is made actually read-only later in the boot process.

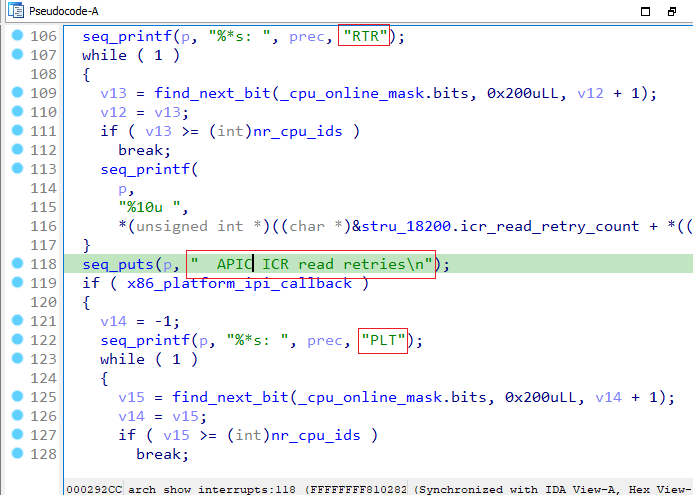

So one solution for our problem is to make sure that the segment has only Read (and possibly Execute) permissions but not Write. If you do that, the string literals from that segment will be displayed inline:

Override access permissions

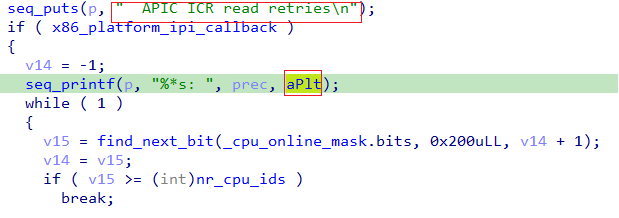

While changing segment attributes works, it may not be suitable for all cases. For example, some compilers can put string constants in the same section as other writable data, so if you change the segment permissions to read-only, the decompiler could produce wrong output for functions using the writable variables. You may also have an opposite situation: a string constant is not actually constant but simply has a default value, so it needs to be marked as variable. In such cases, you can override the attributes of each string variable using const or volatile type attributes. For example, instead of changing the whole segment’s permission, you could edit the type of the aApicIcrReadRet variable  by pressing Y (change type) and changing its type to const char aApicIcrReadRet[].

With this option, only the edited strings literals will be shown inline and others remain as variables.

Show all string literals

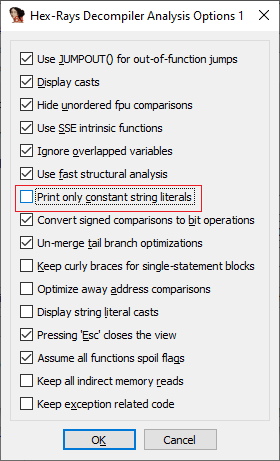

Yet another possibility is to rely on IDA’s analysis of disassembly and show all strings marked as string literals on the disassembly level. This can be done in the decompiler options ( Edit  > Plugins > Hex-Rays Decompiler, Options, Analysis Options 1) by turning off “Print only constant string literals” option.

To change this option for all future databases, see the HO_CONST_STRINGS option in hexrays.cfg.

For more info see the decompiler manual:
